Overview

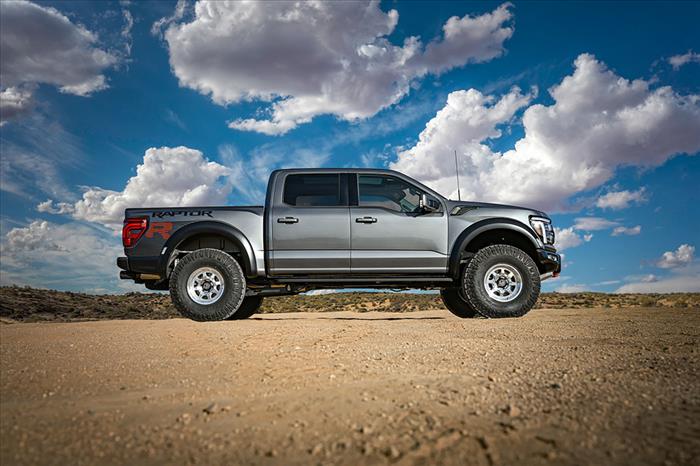

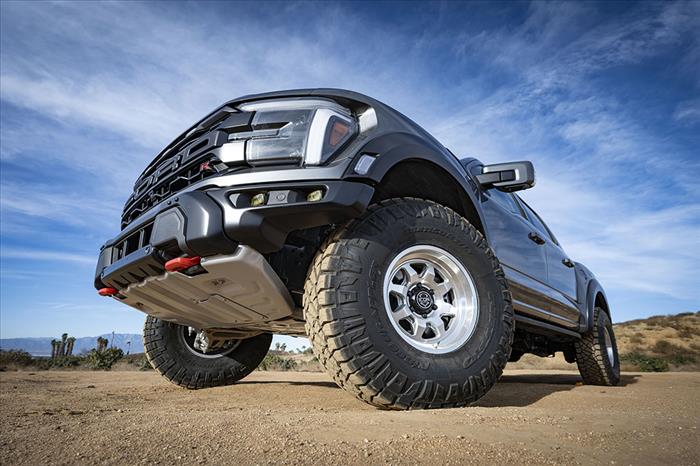

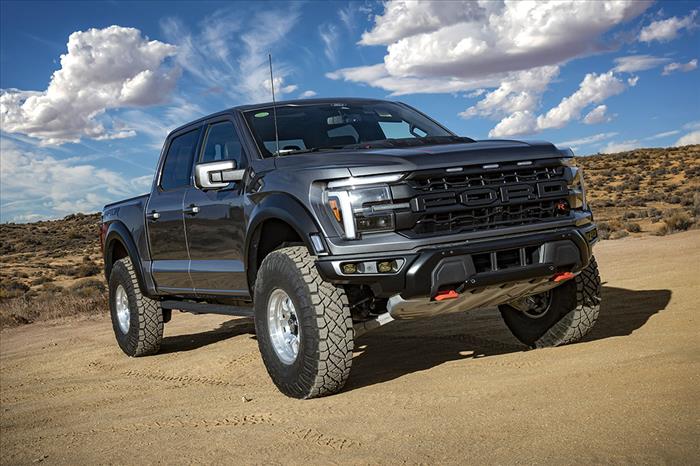

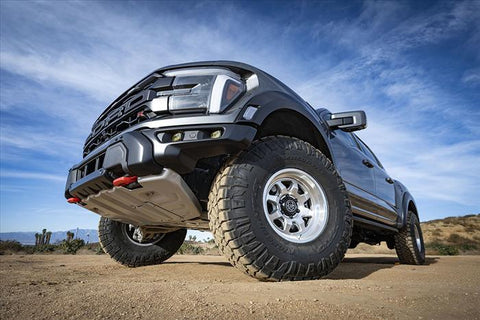

Transform your Gen3 F-150 Raptor’s performance and stance with the ICON Vehicle Dynamics Stage 1 suspension system, engineered specifically for vehicles equipped with OE shock absorbers. The front coil springs utilize a linear spring rate for consistent performance and precise handling while delivering 2.25" of front lift for standard Raptors and 2" for Raptor R models, ensuring an aggressive look and increased ground clearance. Designed for seamless compatibility, they maintain full electronic shock functionality while enhancing your truck's capability and ride quality.
The triple-rate rear coil springs are tailored to deliver a 1" lift on Raptors without additional rear weight. ICON-engineered droop, ride, and overload rates ensure optimal suspension performance across a variety of driving conditions. The performance ride rate balances comfort and compliance, while the overload rate enhances load handling and bottom-out resistance. For maximum articulation and efficiency, the rear coils feature a tapered wire design, providing exceptional droop travel and off-road capability.
Built for both durability and ease of installation, these springs feature a dual-stage powder coating that protects against corrosion in any environment. Their bolt-on design eliminates the need for cutting or modifications, allowing for a straightforward install. Backed by a lifetime guarantee against sagging or breakage, these coil springs redefine your Raptor’s on- and off-road performance, delivering unmatched reliability and confidence wherever the journey takes you.
Features & Benefits
- Vehicle specific design for the Gen3 F-150 Raptor equipped with OE shock absorbers
- Front coils yield 2.25" front lift height over stock on Raptor or 2" of front lift on Raptor R
- Compatible with all versions of available OE shock absorbers
- Maintains electronic shock functionality
- Linear rate front coil springs
- 1" rear lift height over stock on Raptors without additional weight in the rear
- Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
- Performance ride rate for compliance and comfort, overload rate for load and bottom out resistance, extra soft initial rate for maximum droop travel
- Tapered wire rear coil design achieves maximum travel and efficiency
- Significantly improves on- and off-road ride quality and performance over stock
- Bolt-on installation with no cutting required
- Dual stage powder coating for maximum corrosion resistance
- Lifetime guarantee against sagging/breakage
Tech Info:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
- Recommended Aftermarket Tires (w/o 37 Package): 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- Recommended Aftermarket Tires (w/ 37 Package): 37" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
- APPLICATION NOTE #180: Do not combine with coil spacers or damage may occur
- APPLICATION NOTE #187: Only fits OE coilovers. Will not fit ICON or other aftermarket coilovers.
- TECH NOTE: Provides 2.25" of front lift over stock on F-150 Raptor
- TECH NOTE: Provides 2" of front lift over stock on F-150 Raptor R

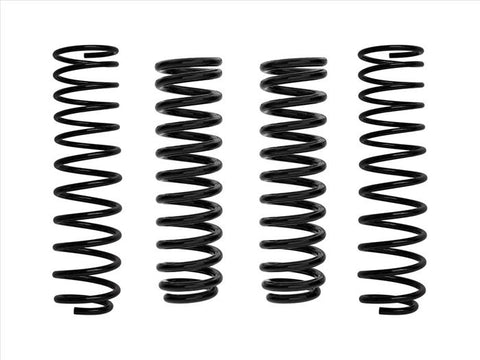

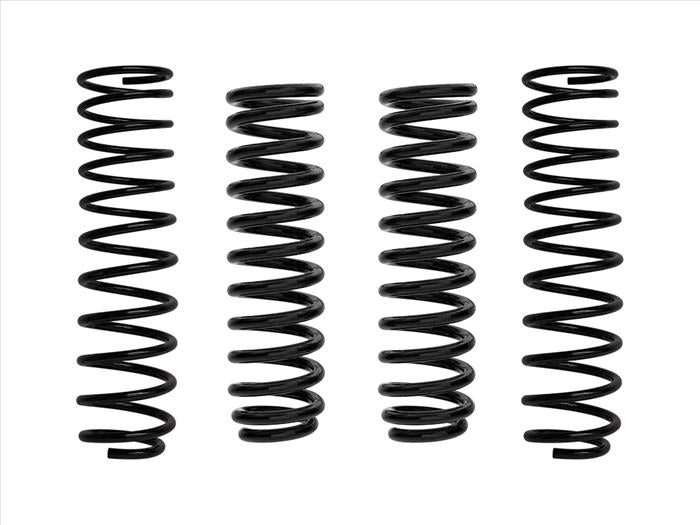

System Components:
- 95232 (QTY: 1) | 21-24 F-150 RAPTOR FRONT SPRING KIT
- 95230 (QTY: 1) | 21-24 F-150 RAPTOR TRIPLE RATE REAR COIL SPRING KIT
